Advantage-Lok II
Standing seam systems have been used on traditional and contemporary homes for more than a century. Standing seam metal roof systems' are clean, graceful lines have been an enduring roofing favorite on a wide range of architecture. Advantage-Lok II standing seam roof system features shorter, 1" high ribs as compared to our original Advantage-Lok standing seam system. The 1" rib design gives the standing seam system slightly better wind uplift performance, although both standing seam system designs do an outstanding job in severe weather. The Advantage-Lok II standing seam roof system is popular in up-scale residential and commercial roofing applications. Advantage-Lok II standing seam metal roof system snap securely together with completely concealed fasteners for maximum wind and weather resistance.

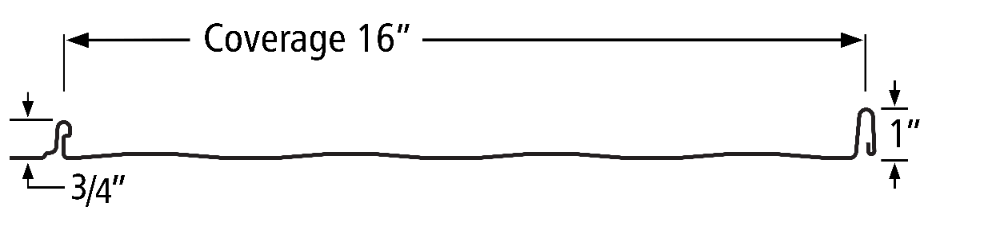

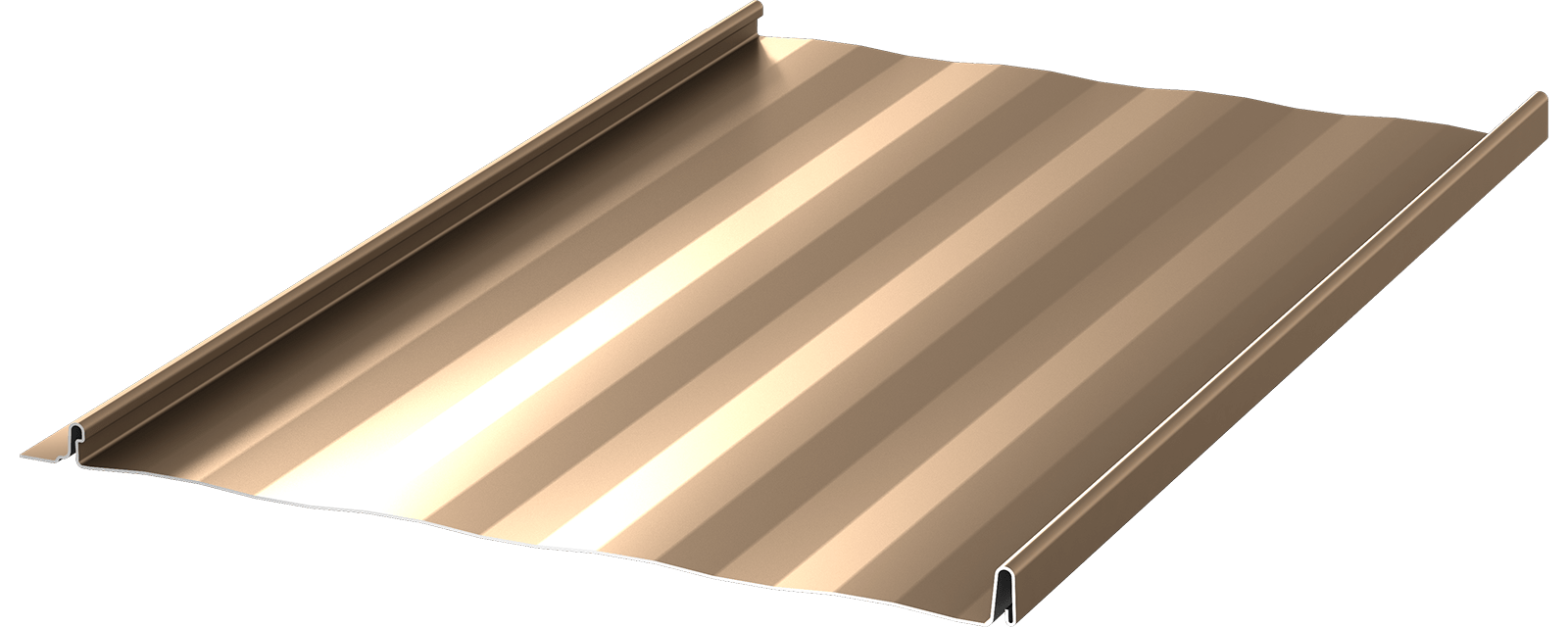

Standing seam concealed fastener panel for roof applications.
3:12 minimum recommended roof pitch.
Coverages: 12" Coverage, 16" Coverage
Rib Height: 1".
Snap locking ribs.
Screw flange installation.
Suitable for solid decking.
High Strength Steel Gauge Options: 24 GA, 26 GA
Anti-corrosion AZ50 Galvalume coating for painted and AZ55 for unpainted steel.
0.032" aluminum.
26 ga available in 45 Year and Lifetime Siliconized Modified Polyester Paint Systems.
24 ga and aluminum available in PVDF (Kynar 500 or Hylar 5000) Paint System.
