ML150

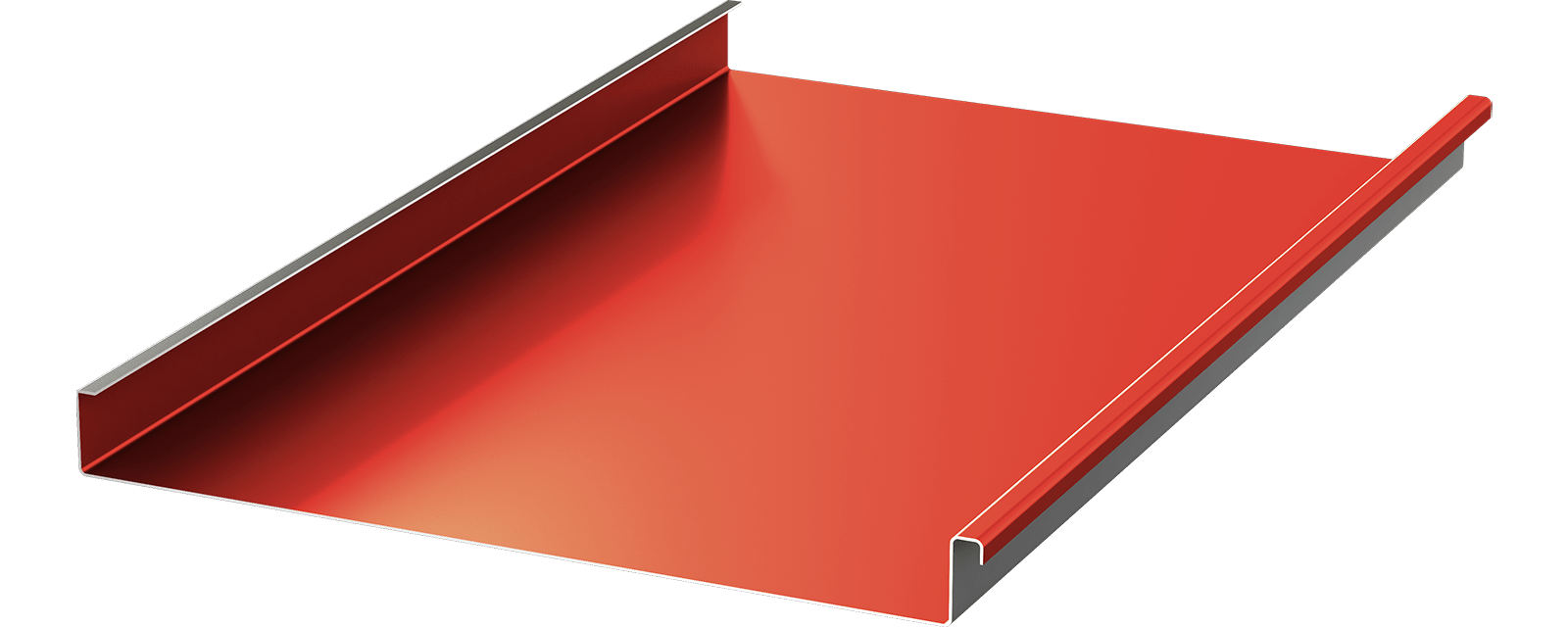

Union's ML150 panel is a mechanically seamed standing seam system for architectural applications. The panel is secured with concealed clips and the panel side laps are locked together using a rooftop seaming machine. ML150 can be curved to meet radius panel applications. Typically specified as an accent feature for schools, shopping centers, banks, hotels, offices, and a variety of other applications.
Application: Roofing Panel
Fastener: Concealed Fastener
Coverages: 12" Coverage, 16" Coverage, 18" Coverage
Rib Height: 1-1/2"
Minimum Recommended Slope: 1:12
Suitable for solid deck.
Mechanically seamed. Installs with clips
Applicable for installations requiring weather-tightness warranties
High Strength Steel Gauge Options: 24 GA
0.032" aluminum.
0.040 aluminum
Anti-corrosion AZ50 Galvalume coating for painted and AZ55 for unpainted steel.
24 ga and aluminum available in PVDF (Kynar 500 or Hylar 5000) Paint System.
PVDF (Kynar 500 or Hylar 5000) Paint System.
