M Panel

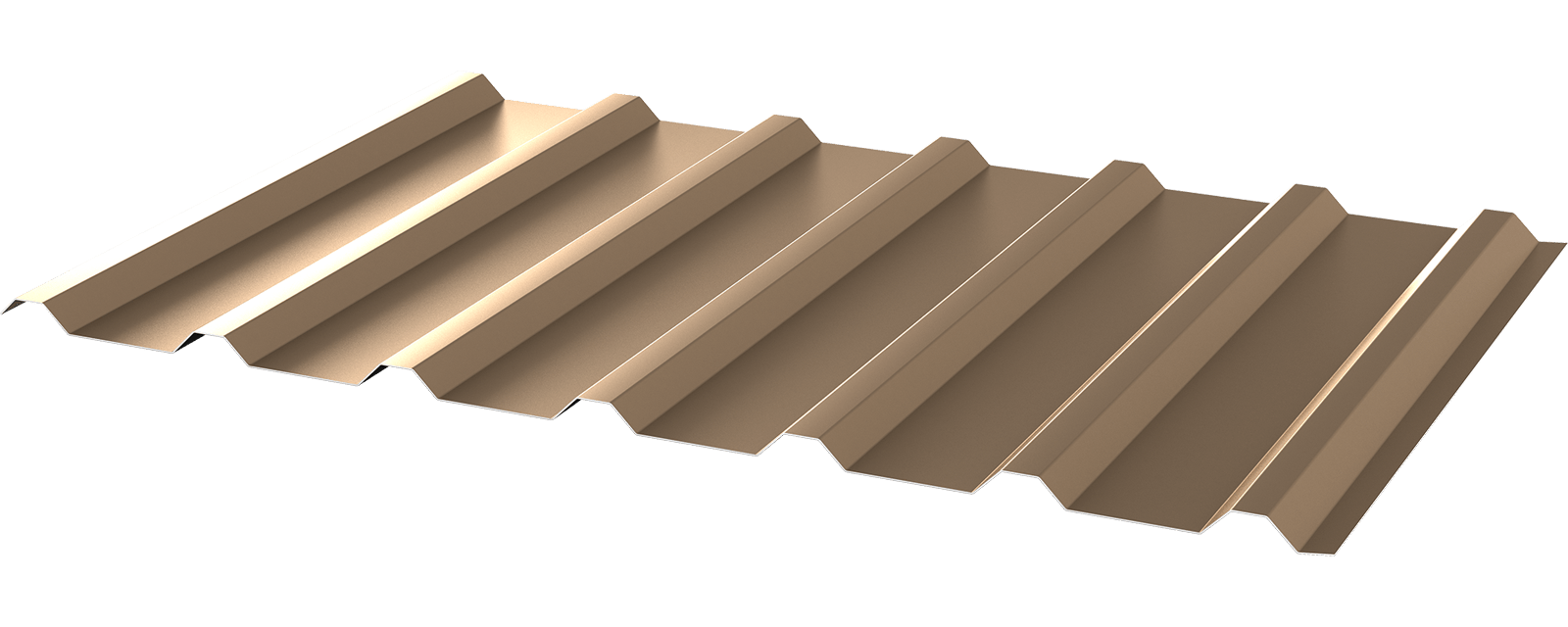

M-Panel is a 36 wide exposed fastened panel suitable for both vertical and horizontal applications. This versatile corrugated panel can be installed over open framing or a solid substrate, providing endless design possibilities, including wall, interior liner, soffit, and roof applications.
Specifications:
Exposed fastener panel for soffit and wall applications
3:12 minimum recommended roof pitch.
Suitable for solid deck or open framing.
Rib Height: 3/4".
Coverage: 36" Coverage
High Strength Steel Gauge Options: 24 GA, 26 GA
Anti-corrosion AZ50 Galvalume coating for painted and AZ55 for unpainted steel.
26 ga available in Siliconized Modified Polyester Paint Systems
24 ga available in PVDF (Kynar 500 or Hylar 5000) Paint SystemModified Polyester Paint Systems.
