SL175

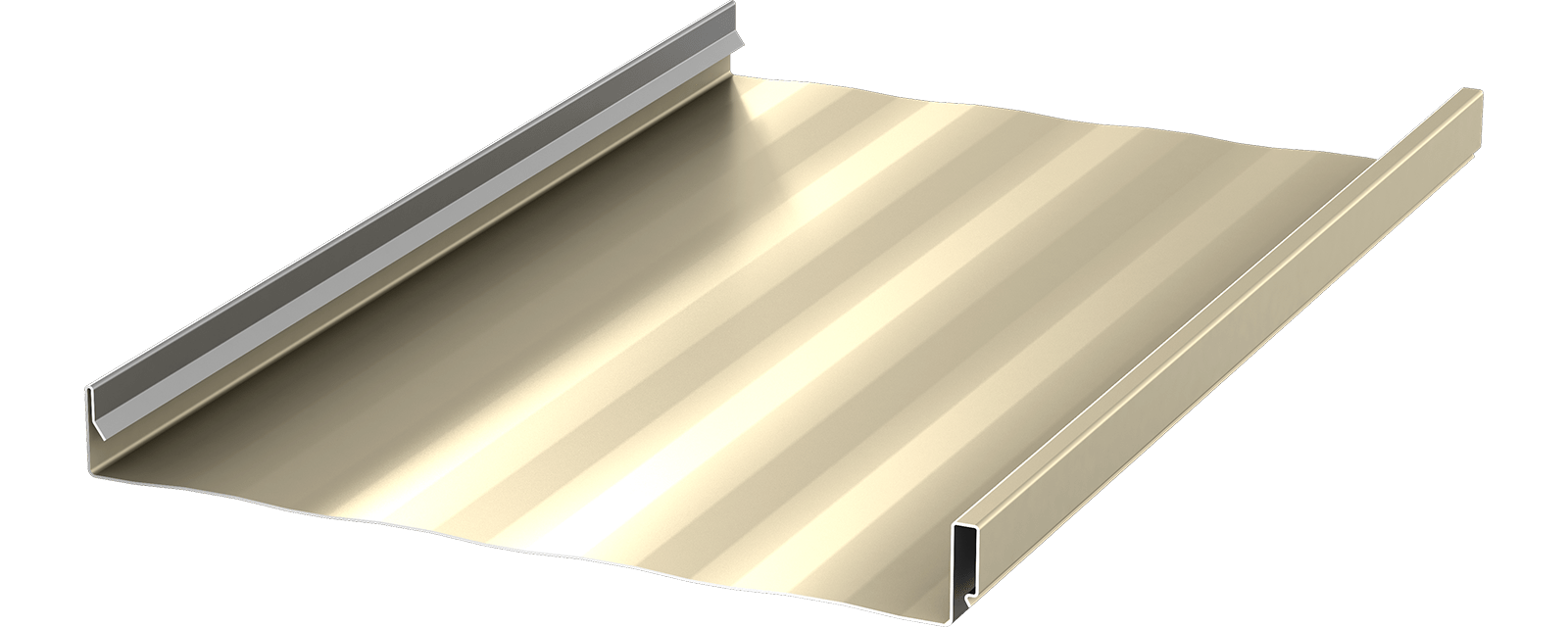

Union's SL (Snap-Lock) 175 metal roofing panel is a snap locking standing seam metal roofing system that can be used for architectural and light structural applications. The snap lock metal roofing panel is secured with concealed clips and the snap locking standing seam metal roofing panel ribs snap lock securely together without the use of special tools. The snap lock metal roofing panels provide very good wind uplift resistance. SL 175 Snap Lock standing seam metal roofing panel can be specified as an accent feature or a total roof system for schools, shopping centers, banks, hotels, offices, and a variety of other applications.
Application: Roofing Panel
Fastener: Concealed Fastener
Coverages: 12" Coverage, 16" Coverage, 18" Coverage
Rib Height:1-3/4".
Minimum Recommended Slope: 1:12
Snap locking ribs. Installs with clips
Suitable for solid deck or open framing.
Applicable for installations requiring weather-tightness warranties.
High Strength Steel Gauge Options: 22 GA, 24 GA
0.032" aluminum.
Anti-corrosion AZ50 Galvalume coating for painted and AZ55 for unpainted steel.
PVDF (Kynar 500 or Hylar 5000) Paint System.
