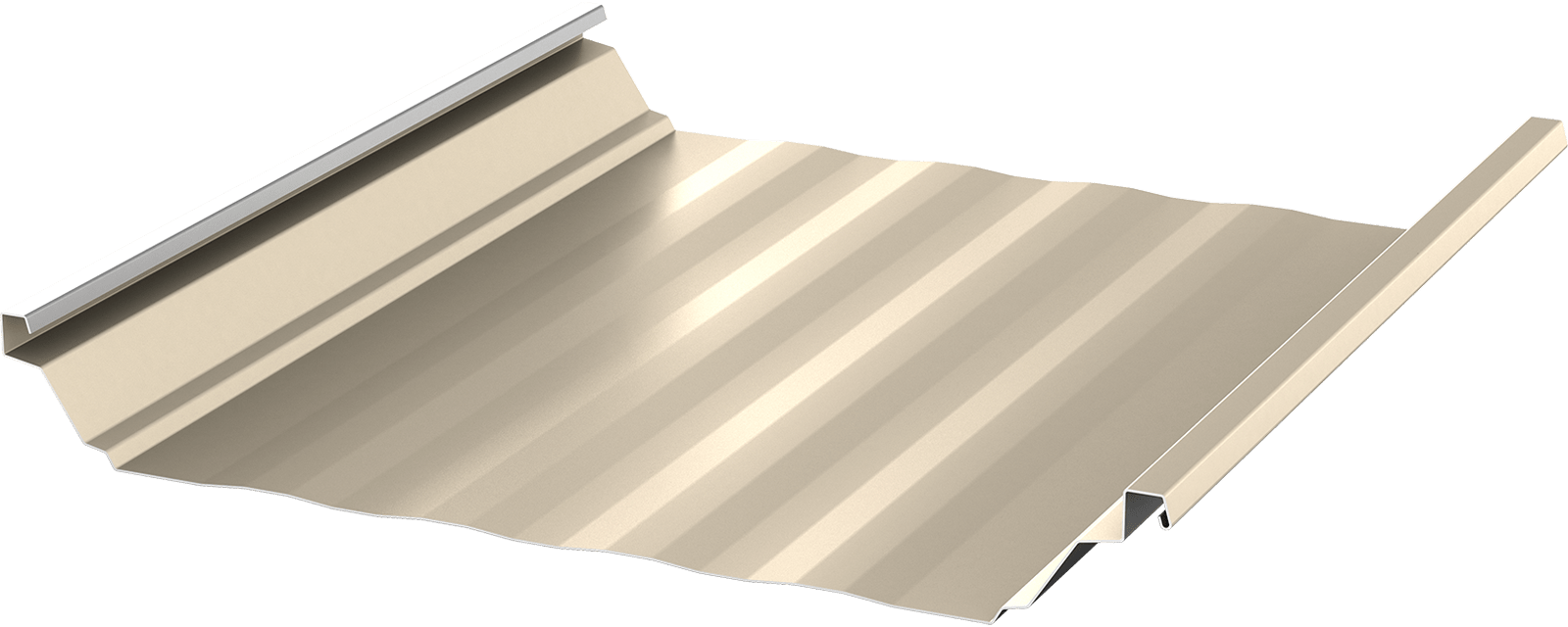

TS-324
The TS-324 Trapezoidal Panel is a structural metal roofing panel which provides superior wind and weather protection under all roof loading conditions. Typically installed over open framing, the trapezoidal profile maintains its structural integrity with a panel coverage of 24. The Trapezoidal Panel's :12 minimum slope recommendation is the lowest of all metal roofing profiles offered.
Application: Roofing Panel
Coverage: 24" Coverage
Rib Height: 3"
Minimum Recommended Slope: 1/4:12
Trapezoidal standing seam panel utilizing sliding clips and structural accessories for roof applications
Mechanically seamed ribs
Suitable for solid decking or open framing
High Strength Steel Gauge Options: 22 GA, 24 GA
Anti-corrosion AZ50 Galvalume coating for painted and AZ55 for unpainted steel.
26 ga available in Siliconized Modified Polyester Paint Systems
24 and 22 ga available in PVDF (Kynar 500 or Hylar 5000) Paint System
